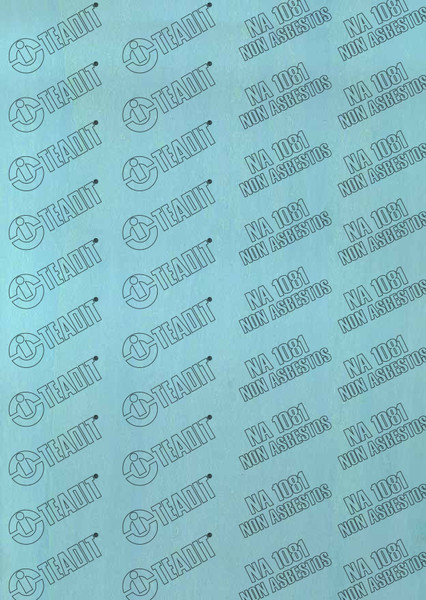

Name: NA1081.06259x63 - Teadit Style NA1081 Blue Compressed Non-Asbestos NBR Gasket Sheet, Dimensions: Length: 59", Width: 63", Thickness: 1/16(0.0625)" (Min Qty: 1)
SKU: NA1081.06259x63
Price: 186.95 USD
Availability: InStock

NA1081.06259x63 - Teadit Style NA1081 Blue Compressed Non-Asbestos NBR Gasket Sheet, Dimensions: Length: 59", Width: 63", Thickness: 1/16(0.0625)" (Min Qty: 1)

(No reviews yet) Write a Review

MSRP: $224.34

$186.95

(You save $37.39 )

Product Overview

Description:

This gasket material sheet is a premium compressed, non-asbestos sheet comprised of a combination of inorganic fillers, para-aramid synthetic fiber and bonded with a nitrile rubber. It is manufactured under rigorous quality control standards that are registered under ISO-9001 certification. This material provides an improved torque retention and lowers emission levels.

Applications

This gasket material has numerous applciations in process industries and in utility services. It is commonly used within applications for oils, gasoline, water and aliphatic hydrocarbons such as propane.

Specifications:

Material Type:	Premium Compressed Sheet with Aramid Fibers and NBR Binder
Maximum Temperature °F(°C):	752°F (400°C)
Continuous Temperature °F(°C):	500°F (260°C)
Maximum Pressure psi(bar):	1595 (110)
Continuous Pressure psi(bar):	725 (50)
Ignition Loss:	26%
Creep Relaxation:	22%
Density lb/ft3(g/cm3)	119.5 lb/ft3 (1.92 g/cm3)
