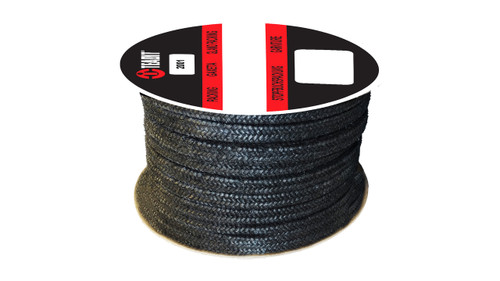

2001.312x10 - Teadit Style 2001 Graphite Yarn, Graphite Filled Packing, Width: 5/16 (0.3125)", Qty by Weight: 10 lb. Spool (Min Qty: 1)

(No reviews yet) Write a Review
MSRP: $4,580.02
$3,799.95
(You save $780.07 )
SKU:
2001.312x10
Availability:
3 Business Days (subject to change)
Minimum Purchase:
1 unit
Adding to cart… The item has been added

Product Overview

Description:

This compression packing material consists of a rugged premium grade, high-performance graphite yarn twisted together into an interlock braid. This material protects shafts from scoring due to the special lubricant to provide a bearing film, which also acts as a blocking agent to prevent wicking. This style of compression packing reduces the coefficient of friction to practically zero. It dissipates heat and keeps the stuffing box cool, which allows for higher shaft speeds and reducing leak-off.

Applications

This style of packing can withstand largely elevated temperatures, aggressive chemicals, boasts a good thermal conductivity capability which makes it ideal for use in severe service valves and rotary shaft applications. It may also be used as end rings for packing sets utilizing softer packings that might tend to extrude. This severe service packing can be effectively applied on all rotating/reciprocating shafts, valves and agitators. Especially effective in digestors and chemical pumps.

Typically Used In:

1. All rotating and reciprocating shafts, valves and agitators.
2. Crystallizers, Filters, Mixers, and continuous digesters
3. Pumps, Slip-type expansion joints, and reciprocating pump rods
4. Strong Caustics, Acids, Chemicals and High-Pressure Steam

Specifications:

Product Dimensions: Cross Section: 5/16(0.3125) Inches (0.79375Cm), Spool Weight: 10 lb. (4.5Kg.) , Approximate Yield: 1.5 ft. Per pound +/- 10 percent

Reviews

(No reviews yet) Write a Review
Material Type: Flexible Graphite Yarn
Minimum Temperature °F(°C):-400°F (-240°C)
Maximum Temperature °F(°C):842°F (450°C)
Steam Temperature °F(°C):1202°F (650°C)
Static Pressure psi(bar):4351 (300)
Rotating Pressure psi(bar):435 (30)
Reciprocating Pressure psi(bar):1450 (100)
Minimum pH:0
Maximum pH:14
